01NOVASTAR RECEIVING CARD
Receiving Card
Receives and distributes display data; the exact model is matched to the screen control system.
PRODUCT SPECIFICATIONS
Clear Specifications,
More Accurate Selection.
Review foldable poster displays, rental LED screens, standard modules, flexible modules and spare parts in one place. All refresh rates reflect the latest confirmed specifications.
REFRESH RATE1920-7680Hz
- 04
- Core Product Series
- Indoor + Outdoor
- Indoor & Outdoor Applications
- 640 × 1920
- Poster Display Area / mm
- 320 × 160
- Main Module Size / mm
01SMART COMMERCIAL DISPLAY
Foldable Poster Display
Supports upright display, 180° folded transport and multi-screen combinations for retail windows, showrooms, meetings and mobile promotion.
- Indoor P1.25-P2.5
- Outdoor P2.5-P5
- GOB Protection
- 1920 / 3840 Hz
| Environment | Model | LED Package | Resolution | Total Pixels | Scan | Refresh Rate |
|---|---|---|---|---|---|---|
| Outdoor | P2.5 | 1415 | 256 × 768 | 196,608 | 1/16 | 1920 / 3840 Hz |
| Outdoor | P3.076 | 1415 | 208 × 624 | 129,792 | 1/13 | 1920 / 3840 Hz |
| Outdoor | P4 | 1921 | 160 × 480 | 76,800 | 1/10 | 1920 / 3840 Hz |
| Outdoor | P5 | 1921 | 128 × 384 | 49,152 | 1/8 | 1920 / 3840 Hz |
| Indoor | P1.25 | 1010 | 512 × 1536 | 786,432 | 1/52 | 1920 / 3840 Hz |
| Indoor | P1.538 | 1212 | 416 × 1248 | 519,168 | 1/52 | 1920 / 3840 Hz |
| Indoor | P1.86 | 1515 | 344 × 1032 | 355,008 | 1/43 | 1920 / 3840 Hz |
| Indoor | P2 | 1515 | 320 × 960 | 307,200 | 1/40 | 1920 / 3840 Hz |
| Indoor | P2.5 | 2020 | 256 × 768 | 196,608 | 1/32 | 1920 / 3840 Hz |
Display Area640 × 1920 mm
Overall Size646 × 2050 mm
Standard Module320 × 160 mm
WeightApprox. 43 kg
Surface ProtectionGOB
White Balance Brightness650 cd/m²
Gray Scale14-16 bit
Color Temperature3200-9000 K
Horizontal / Vertical Viewing Angle160° / 160°
Contrast8000 : 1
Power Input110-240 V
Control ModeSynchronous / Asynchronous
Playback & CommunicationAPP / USB / Ethernet / 4G Remote
Refresh Rate1920 / 3840 Hz
Frame Rate60 Hz
Rated Lifetime≥ 50,000 h
02STAGE & LIVE EVENTS
Rental LED Display
Lightweight die-cast cabinets, quick locks and modular construction support repeated assembly, transport and maintenance for indoor and outdoor events.
- 500 × 500 mm
- 500 × 1000 mm
- Quick-Lock Structure
- 7680 Hz
| Environment | Model | Module Size | Module Resolution | Pixels per Square Meter | Scan | Refresh Rate |
|---|---|---|---|---|---|---|
| Outdoor | P2.604 | 250 × 250 mm | 96 × 96 | 147,456 | 1/24 | 7680 Hz |
| Outdoor | P2.976 | 250 × 250 mm | 84 × 84 | 112,896 | 1/21 | 7680 Hz |
| Outdoor | P3.91 | 250 × 250 mm | 64 × 64 | 65,536 | 1/16 | 7680 Hz |
| Indoor | P2.604 | 250 × 250 mm | 96 × 96 | 147,456 | 1/24 | 7680 Hz |
| Indoor | P2.976 | 250 × 250 mm | 84 × 84 | 112,896 | 1/21 | 7680 Hz |
| Indoor | P3.91 | 250 × 250 mm | 64 × 64 | 65,536 | 1/16 | 7680 Hz |
03FIXED INSTALLATION
Standard LED Module
Standardized modules support information displays, commercial spaces and fixed installations. Indoor models cover P1.25-P5, with outdoor specifications listed below.
- Indoor P1.25-P5
- Outdoor P2.5-P10
- Multiple Module Sizes
- 1920 / 3840 Hz
| Model | Module Size | Scan | Module Resolution | LED Package | Brightness | Refresh Rate |
|---|---|---|---|---|---|---|
| P2.5 | 320 × 160 mm | 1/16 | 128 × 64 | 1415 | 4500 cd/m² | 1920 / 3840 Hz |
| P3 | 192 × 192 mm | 1/16 | 64 × 64 | 1415 | 4500 cd/m² | 1920 / 3840 Hz |
| P3.076 | 320 × 160 mm | 1/13 | 104 × 52 | 1415 | 4500 cd/m² | 1920 / 3840 Hz |
| P4 | 320 × 160 mm | 1/10 | 80 × 40 | 1921 | 4500 cd/m² | 1920 / 3840 Hz |
| P4 | 256 × 128 mm | 1/8 | 64 × 32 | 1921 | 4500 cd/m² | 1920 / 3840 Hz |
| P5 | 320 × 160 mm | 1/8 | 64 × 32 | 1921 | 4500 cd/m² | 1920 / 3840 Hz |
| P6 | 192 × 192 mm | 1/8 | 32 × 32 | 2525 | 4300 cd/m² | 1920 / 3840 Hz |
| P6.67 | 320 × 160 mm | 1/6 | 48 × 24 | 2525 | 4300 cd/m² | 1920 / 3840 Hz |
| P8 | 320 × 160 mm | 1/5 | 40 × 20 | 2525 | 4300 cd/m² | 1920 / 3840 Hz |
| P10 | 320 × 160 mm | 1/4 | 32 × 16 | 3535 | 4500 cd/m² | 1920 / 3840 Hz |
04CREATIVE SURFACES
Flexible LED Module
The 320 × 160 mm flexible module adapts to columns, curves and custom structures for commercial and immersive creative displays.
- P1.25-P4
- 320 × 160 mm
- Curves / Columns
- 1920 / 3840 Hz
| Model | Module Size | Scan | Module Resolution | LED Package | Brightness | Refresh Rate |
|---|---|---|---|---|---|---|
| P1.25 | 320 × 160 mm | 1/64 | 256 × 128 | 1010 | 550 cd/m² | 1920 / 3840 Hz |
| P1.53 | 320 × 160 mm | 1/52 | 208 × 104 | 1212 | 600 cd/m² | 1920 / 3840 Hz |
| P1.86 | 320 × 160 mm | 1/43 | 172 × 86 | 1515 | 600 cd/m² | 1920 / 3840 Hz |
| P2 | 320 × 160 mm | 1/40 | 160 × 80 | 1515 | 600 cd/m² | 1920 / 3840 Hz |
| P2.5 | 320 × 160 mm | 1/32 | 128 × 64 | 2020 | 600 cd/m² | 1920 / 3840 Hz |
| P3.076 | 320 × 160 mm | 1/32 | 104 × 52 | 2020 | 550 cd/m² | 1920 / 3840 Hz |
| P4 | 320 × 160 mm | 1/32 | 80 × 40 | 2020 | 500 cd/m² | 1920 / 3840 Hz |
05SPARE PARTS
Common Spare Parts
Spare parts are matched to the original display model, interfaces and control system for installation, replacement and maintenance.

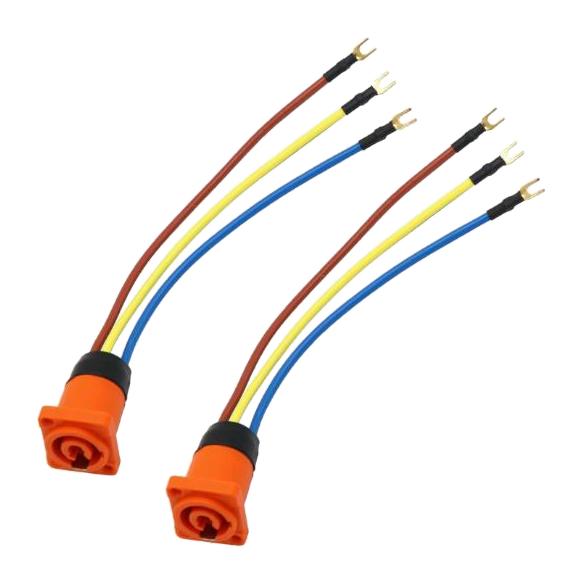

02POWER CABLE
Power Cable
Provides cabinet or module power connections and is configured to project power and interface requirements.

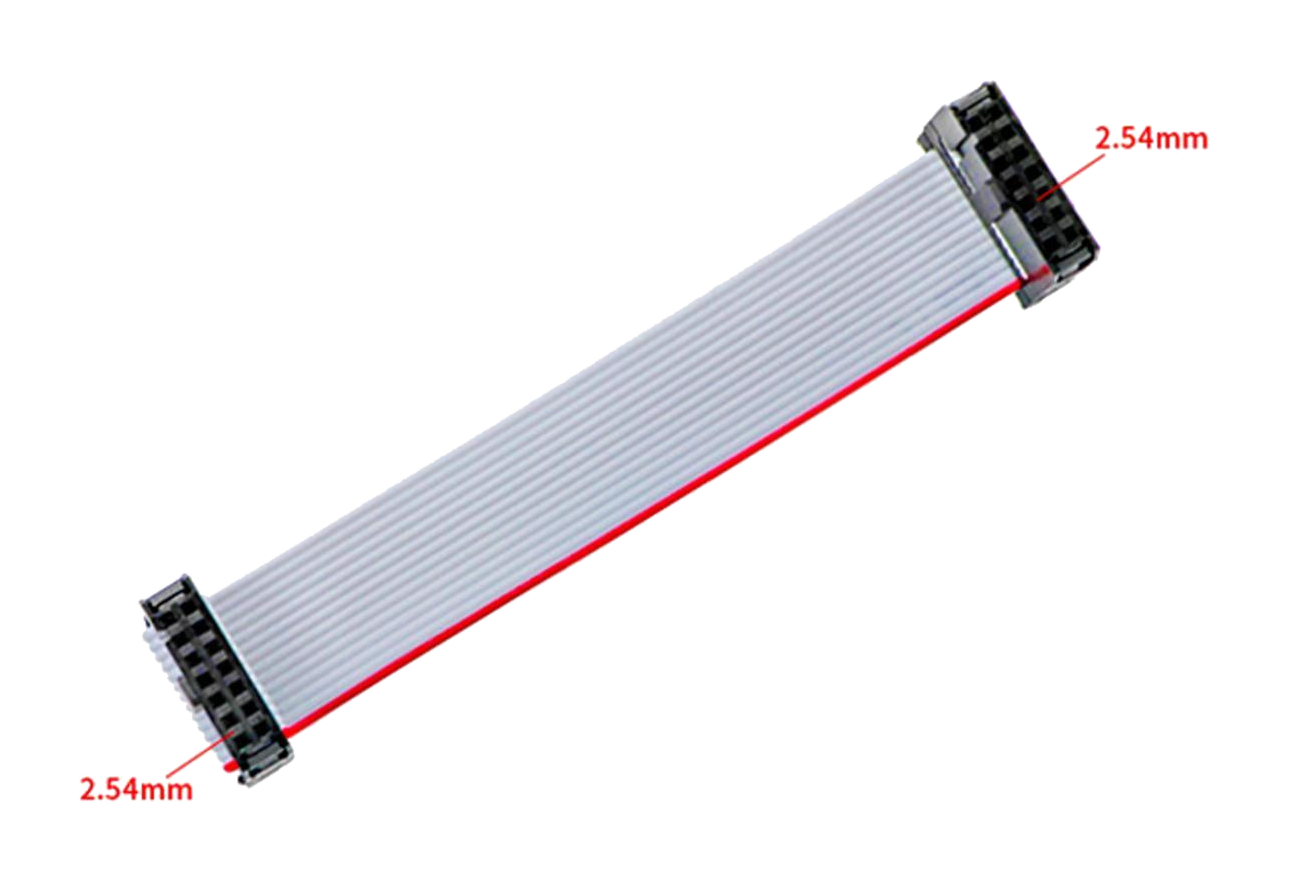

03MODULE CABLE
Module Ribbon Cable
Connects the modules to the receiving system, with length and interface matched to the cabinet structure.

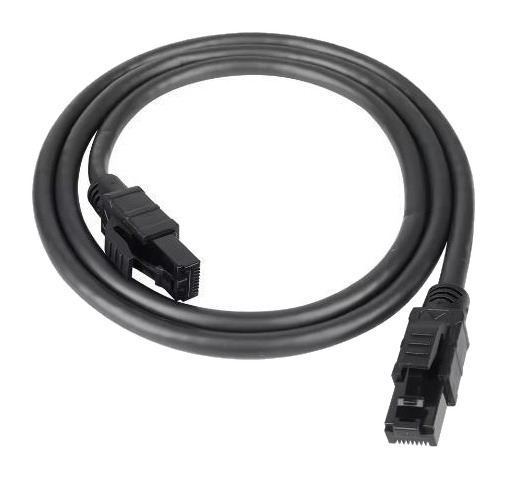

04CAT6 SIGNAL CABLE
CAT6 Signal Cable
Provides stable signal transmission between the control system and display cabinets.

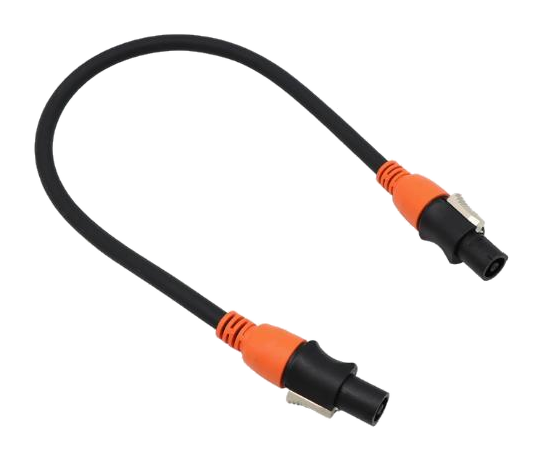

05AVIATION CONNECTOR
Aviation Connectors
Enables fast power and signal connections for rental cabinets.

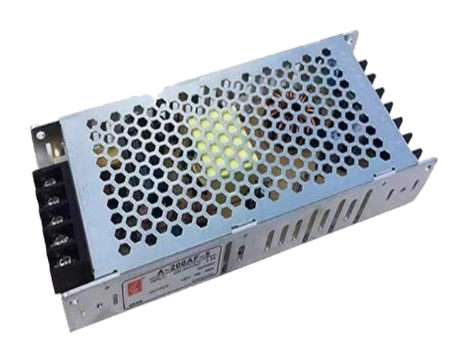

06POWER SUPPLY
LED Power Supply
110-220 V input, selected according to module power consumption and cabinet configuration.
PROJECT CONFIGURATIONSpecifications Are the Starting Point,
Specifications Are the Starting Point,
The Application Defines the Final Solution.
Share the installation environment, viewing distance, target dimensions and intended use. We will help confirm the pixel pitch, brightness, control system and supporting structure.
